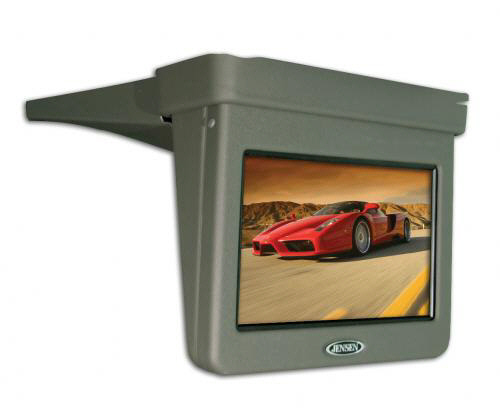

10.2" Wide Screen LCD Panel Upgrade to Replace OEM Installed CRT's

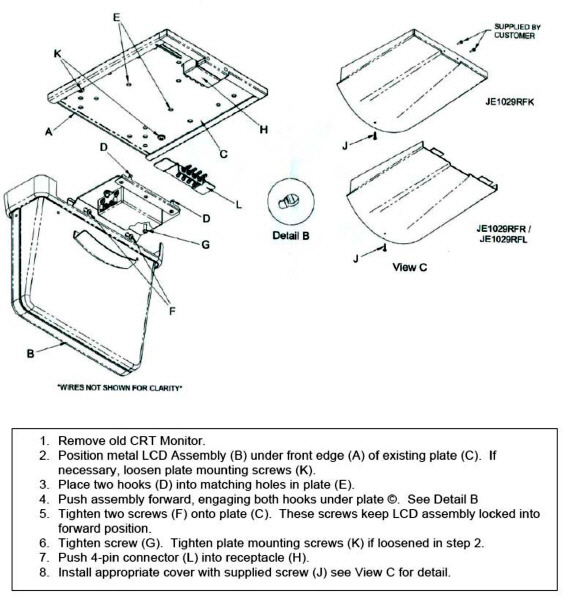

This unit is designed to replace old style OEM MCI CRT type monitors. Please look at the diagram to see if your coach has factory metal bracket in ceiling. You must supply this bracket for mounting.
It’s easy to retrofit your buses with a brand new JENSEN® LCD Flat Panel monitor! Simply remove your dated CRT, position and hook our new, high resolution JENSEN® JE1029RFK 10.2" LCD monitor under the plate and clamp it in place. It’s so simple, our space-saving JE1029RFK can even use the same wiring as your old system! With the installation of this new wide screen LCD monitor, your buses will be ready to hit the road in style.
Resolution: 800 x 400 pixels
Brightness: 400 nits
Contrast Ratio: 300:1
Viewing Angles (degrees): Left = 60 Right = 60 Top = 50 Bottom = 60
Backlight Life: 30,000 hours
Image Aspect Ratio: 16:9
Video Input Signal: NTSC Composite Video
Video Input: RCA
Operating Voltage: 10-16 VDC
Storage Temperature (degrees): -30C to +70C
